the wall - Premium Wall and Ceiling Finishing Material

editor: AK

Asahi Woodtec Corp. of Japan introduces the Wall, a premium wall and ceiling finishing material that highlights the natural beauty and rich texture of real wood. Designed to infuse interior spaces with warmth and character,
the Wall offers a sophisticated alternative to traditional wallpaper, distinguished by its authentic grain patterns and refined aesthetics.

By embracing the organic charm of natural materials, the Wall transforms interiors into elegant, visually captivating spaces, allowing for personalized designs that exude both sophistication and individuality.

The product range features 12 carefully selected wood species, each chosen for its unique texture and appeal.



With its exceptional craftsmanship and timeless appeal, The Wall elevates interiors, bringing nature’s elegance into modern living spaces.

Interior Images with the wall

Top page:

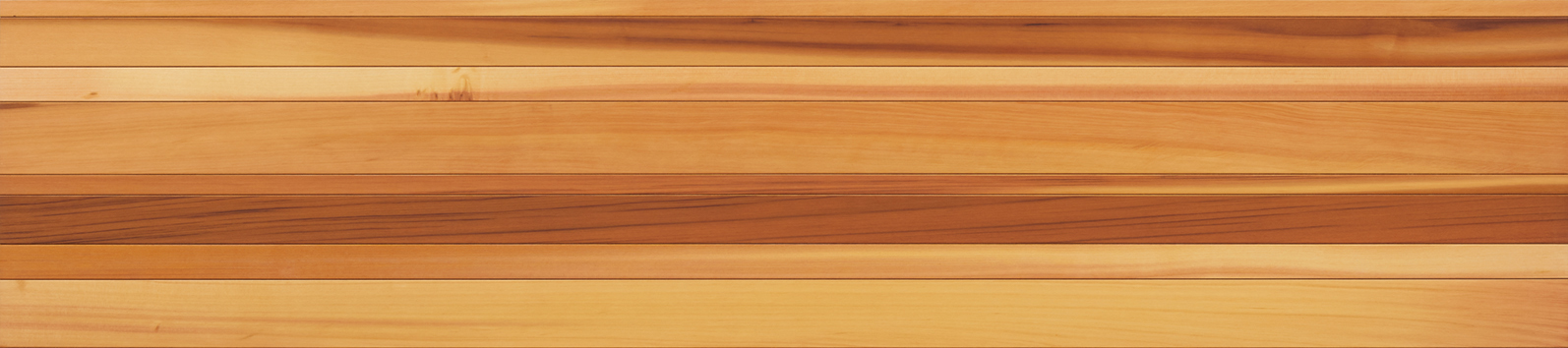

Red Cedar - Real Wood Veneer Type (Long Planks)
Design: Random Pitch

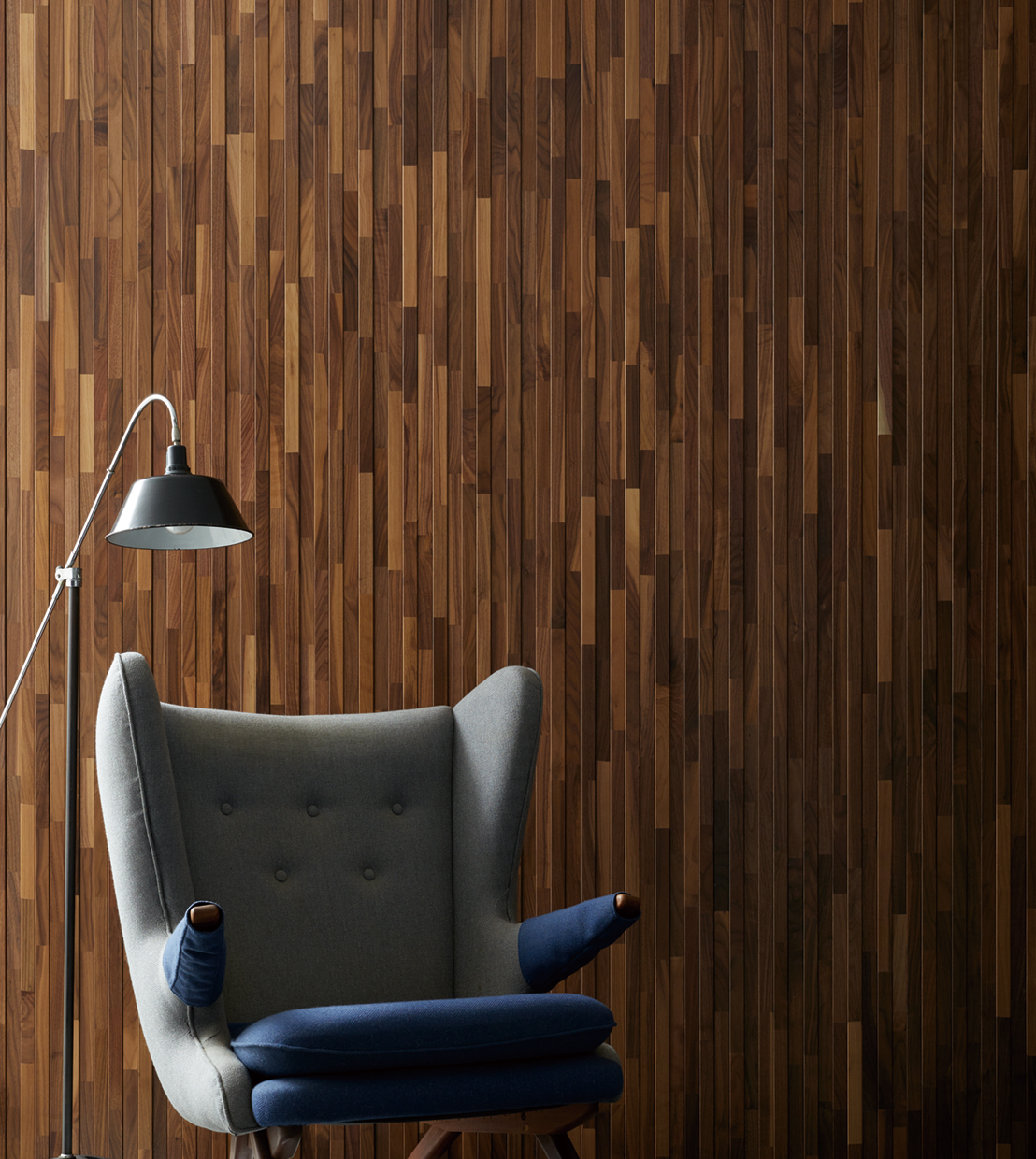

Black Walnut - M-type: Solid Wood Veneered MDF Type (Long Planks)
Design: Relief

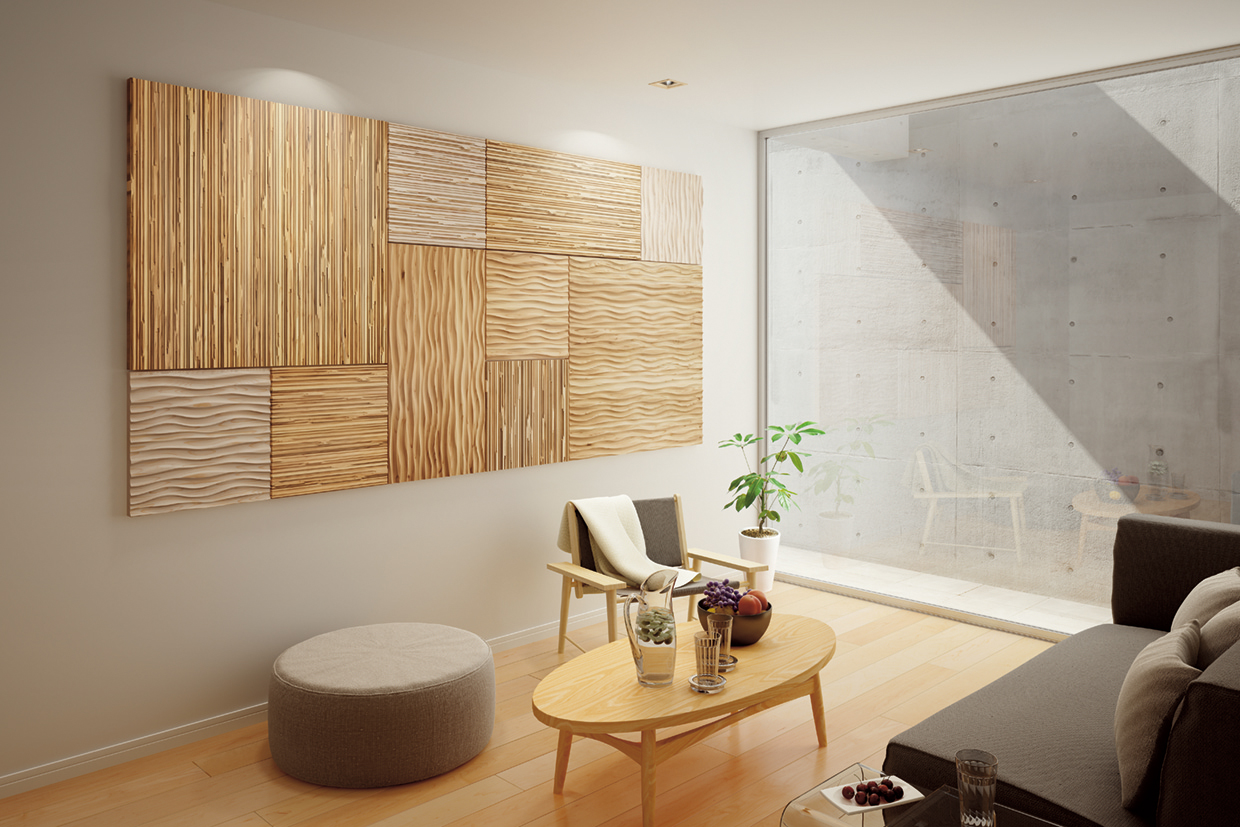

Sugi (Japanese Cedar) - Q-type: Thick Three-Layer Cross-Laminated Solid Wood Panels (Square)

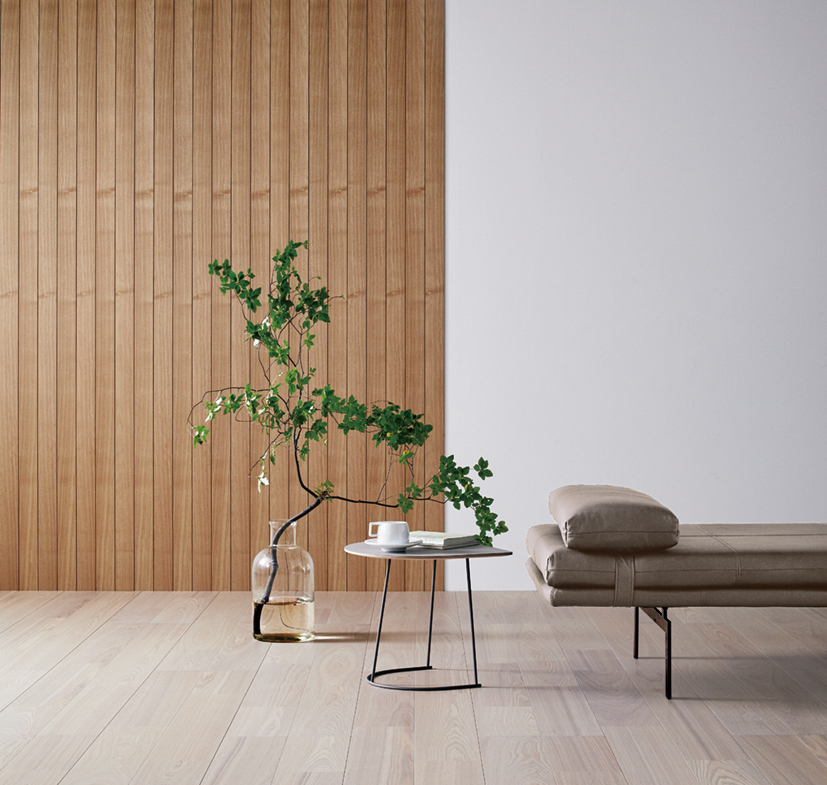

Ash - R-type: Real Wood Veneer Type (Long Planks)
Design: 75mm Pitch

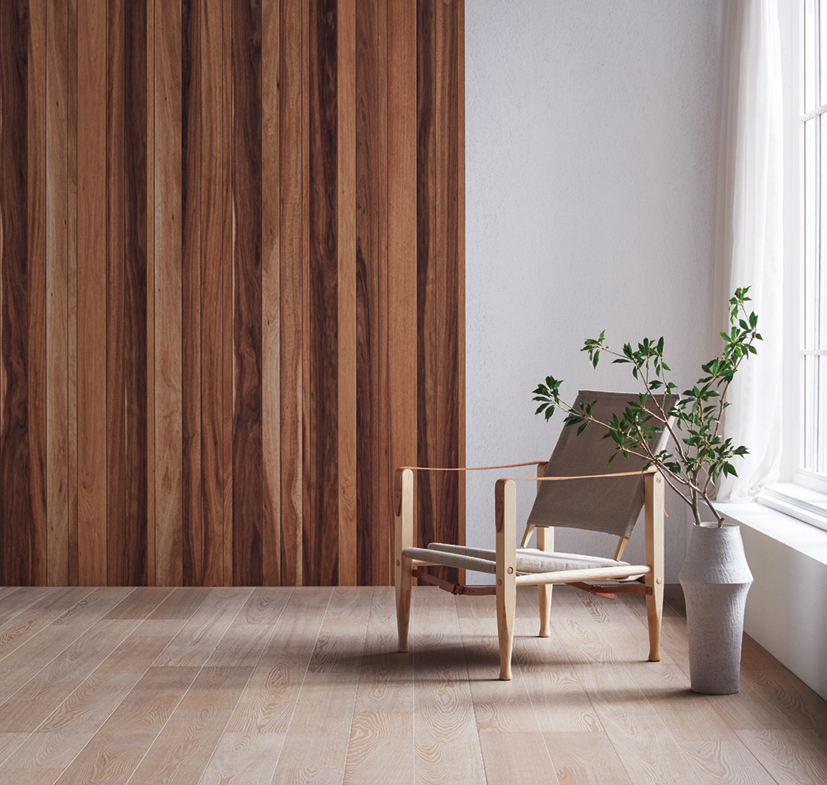

Acacia - R-type: Real Wood Veneer Type (Long Planks)
Design: Random Pitch

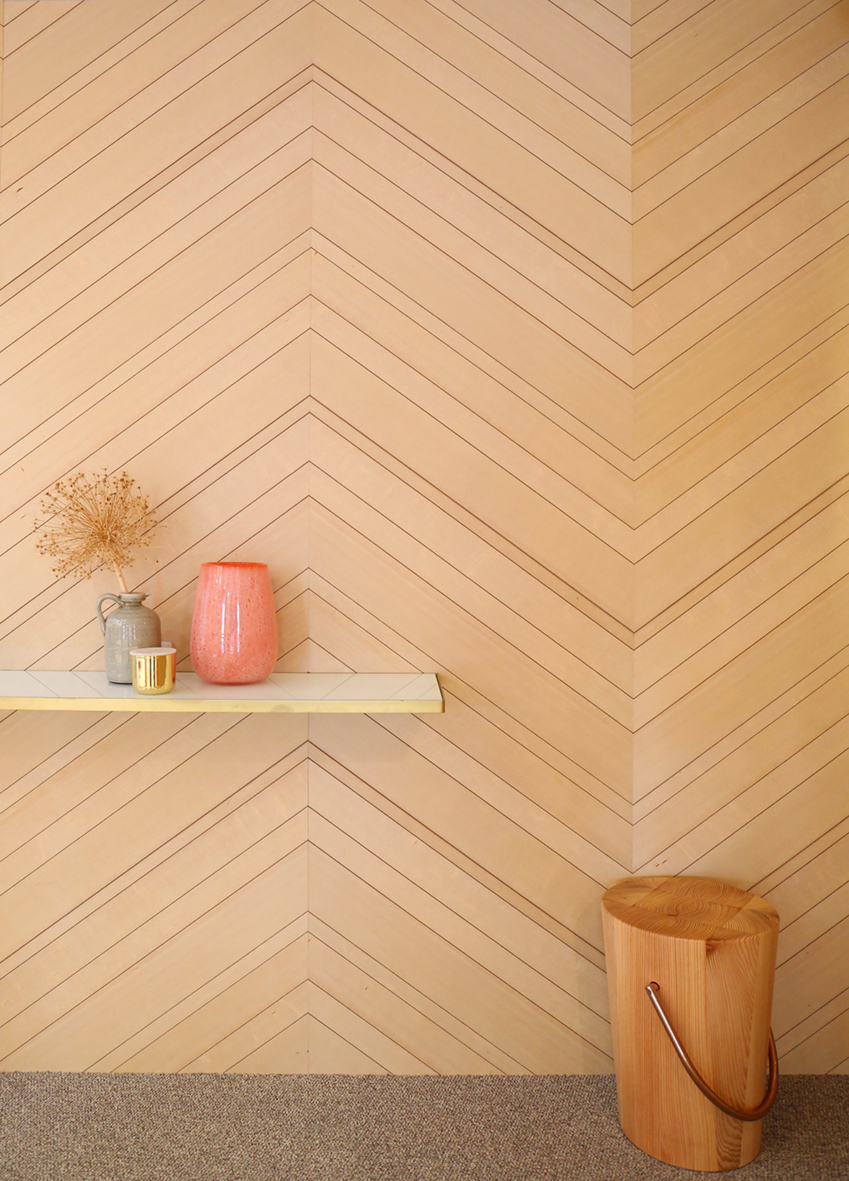

Spruce - R-type: Real Wood Veneer Type (Long Planks)
Design: Random Pitch

Product Lineup

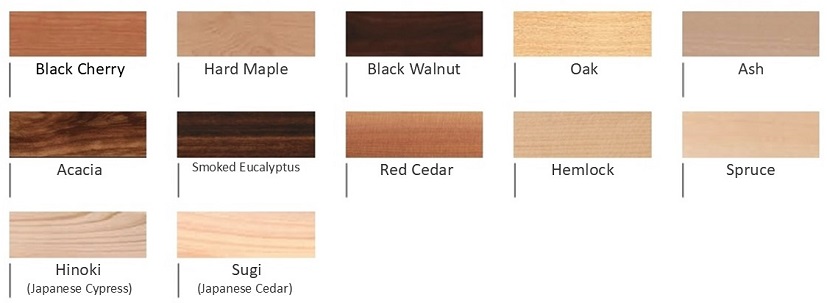

the wall is available in 12 distinct wood species, offered in either Solid Wood/Solid Wood Panel planks or Natural Wood Veneer planks, depending on the wood species.

Solid Wood/Solid Wood Panel

M-type: Solid Wood Veneered MDF Type (Long Planks)
Wood Species: Black Cherry, Hard Maple, Black Walnut, Oak
Size: 2730mm (L) × 13.5mm (T) × 152mm (W) /107 31⁄64in (L) x 0 17⁄32in (T) x 5 63⁄64in (W)
Effective width after installation: 150mm / 5 29⁄32in (2mm/0 5⁄64in overlap between planks)
Designs:

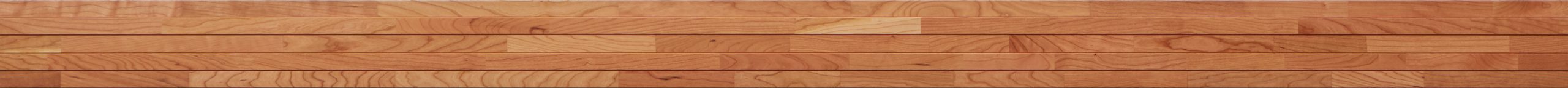

Relief (Black Cherry)

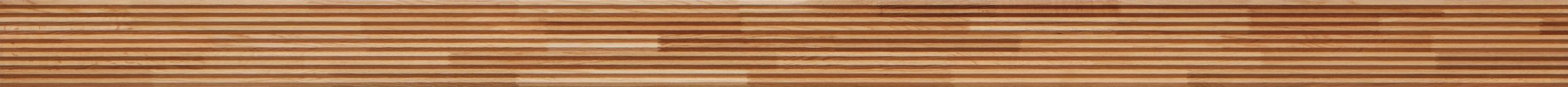

Notches (Oak)


A-type: Softwood Solid Wood Edge-Glued Panel Type (Long Planks)
Wood Species: Red Cedar, Hemlock, Spruce
Size: 2730mm (L) × 15mm (T) × 176mm (W) / 107 31⁄64in (L) x 0 19⁄32in (T) x 6 59⁄64in (W)
Effective width after installation: 173mm / 6 13⁄16in (3mm/0 1⁄8in overlap between planks)
Designs:

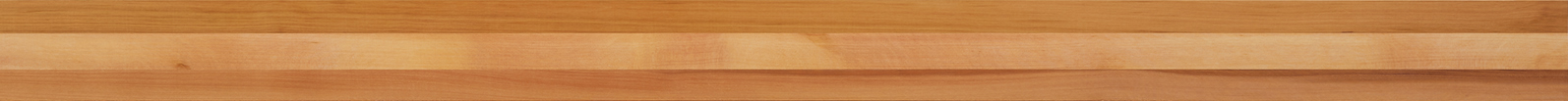

F-flat (Red Ceder)

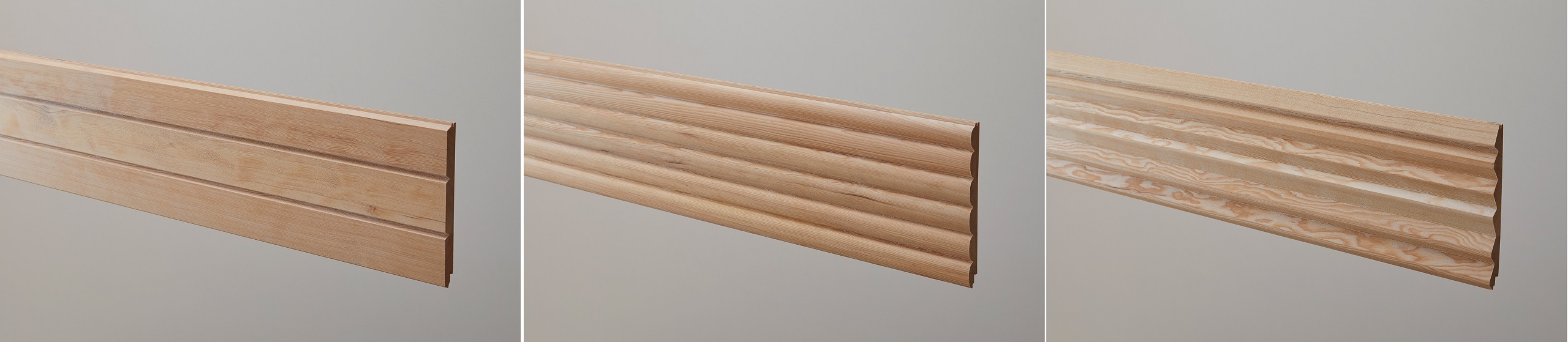

V-flat, T-round, M-mount (Hemlock)

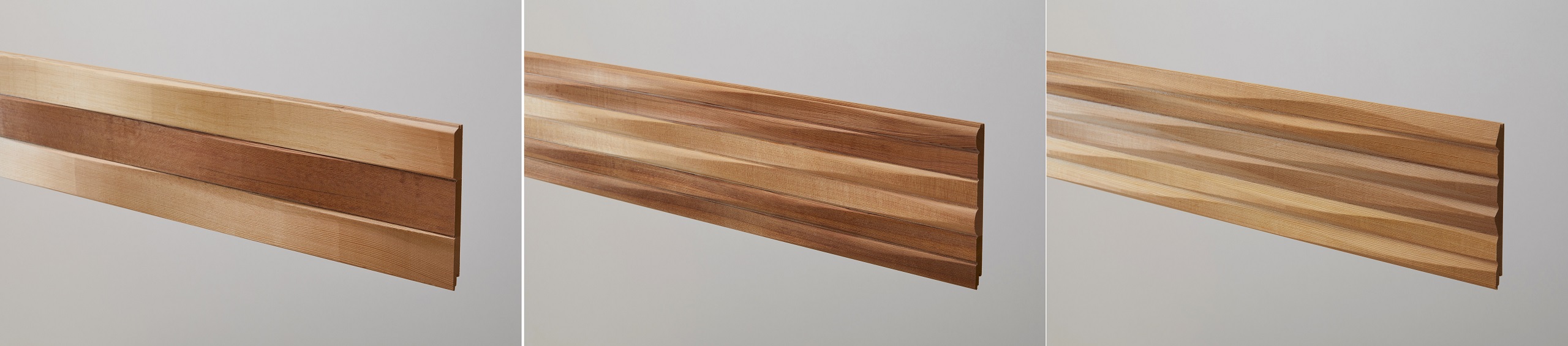

V-flat Wave, T-round Wave, M-mount Wave (Red Ceder)

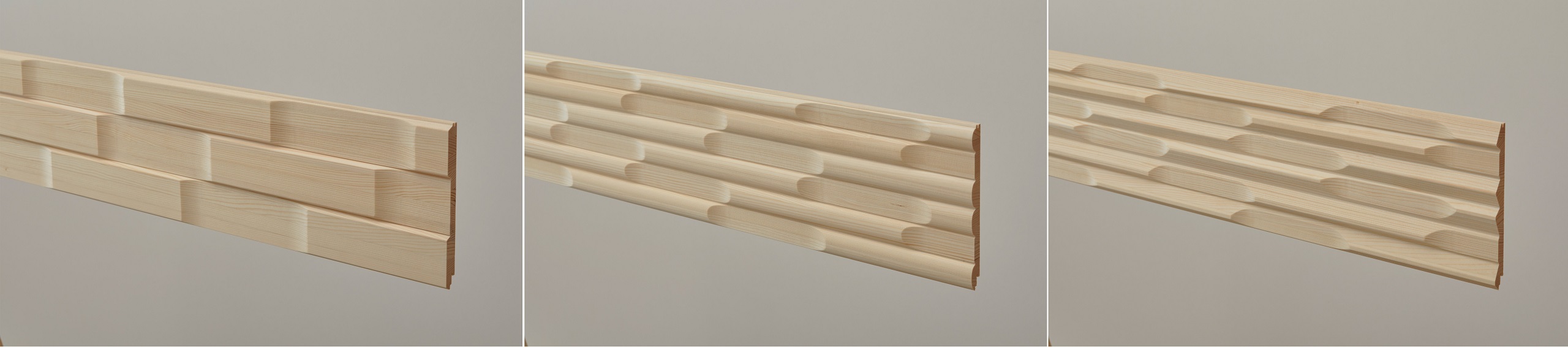

V-flat Block, T-round Block, M-mount Block (Spruce)


B-type: Solid Wood type (Long Planks)
Size: 3000mm (L) × 27mm (T) × 171mm (W) / 118 7⁄64in (L) x 1 1⁄16in (T) x 6 47⁄64in(W)
Wood Species: Hinoki and Sugi
Designs:

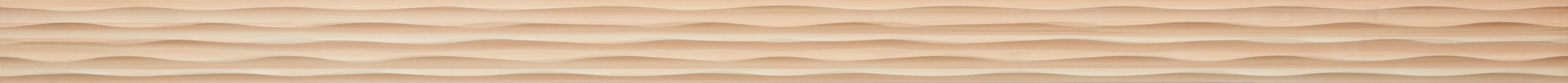

Soft Wave (Hinoki)

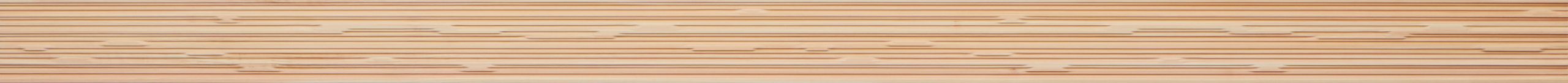

Smart Decora (Hinoki)

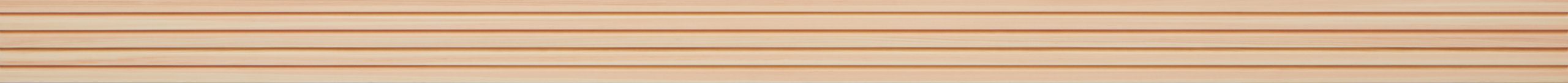

Straight Rib (Hinoki)


Wood Species: Sugi
Mokudashi


S-type: Two-Layer Solid Wood Panel type (Long Planks)
Size: 1800mm (L) × 17mm (T) × 148mm (W) / 70 55⁄64in (L) x 0 43⁄64in (T) x 5 53⁄64in(W)
Wood Species: Sugi
Designs:

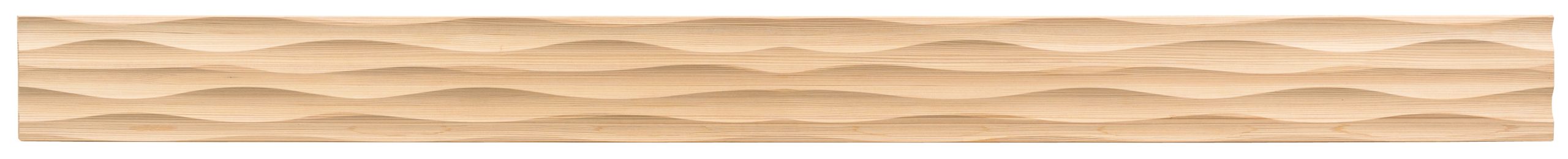

Soft Wave

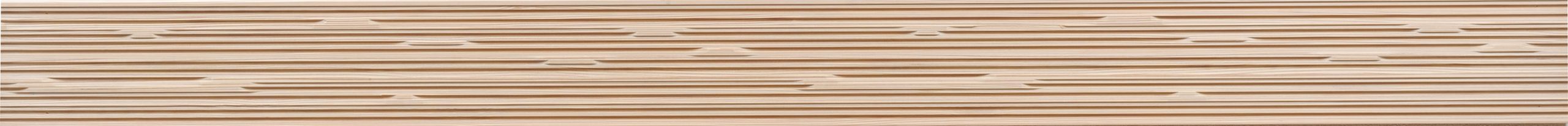

Smart Decora

Simple Rive

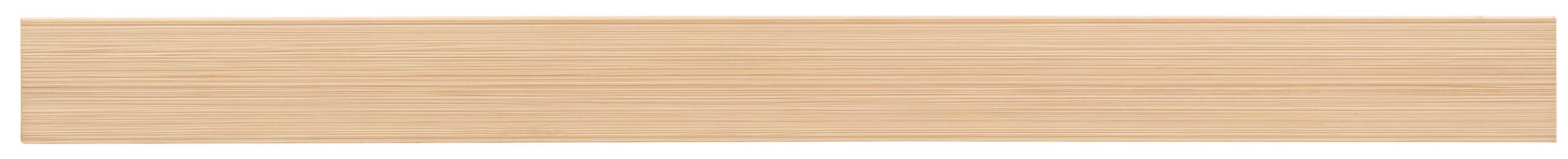

Wood Species: Sugi

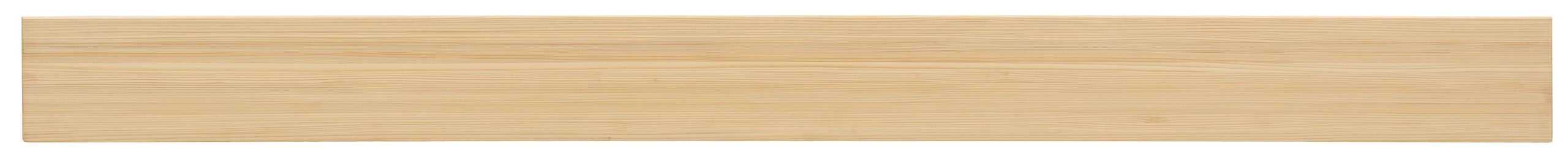

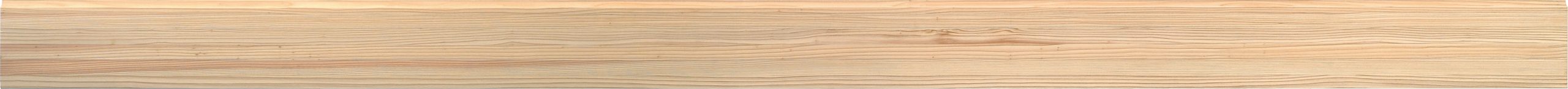

Flat
Wood Species: Sugi


Q-type: Thick Three-Layer Cross-Laminated Solid Wood Panels (Square)
Sizes:
444mm (L) × 36mm (T) × 444mm (W) /17 31⁄64in(L) x 1 27⁄64in (T) x 17 31⁄64in (W)
894mm (L) × 36mm (T) × 444mm (W) /35 13⁄64in(L) x 1 27⁄64in (T) x 17 31⁄64in (W)
894mm (L) × 36mm (T) × 894mm (W) /35 13⁄64in(L) x 1 27⁄64in (T) x 35 13⁄64in (W)

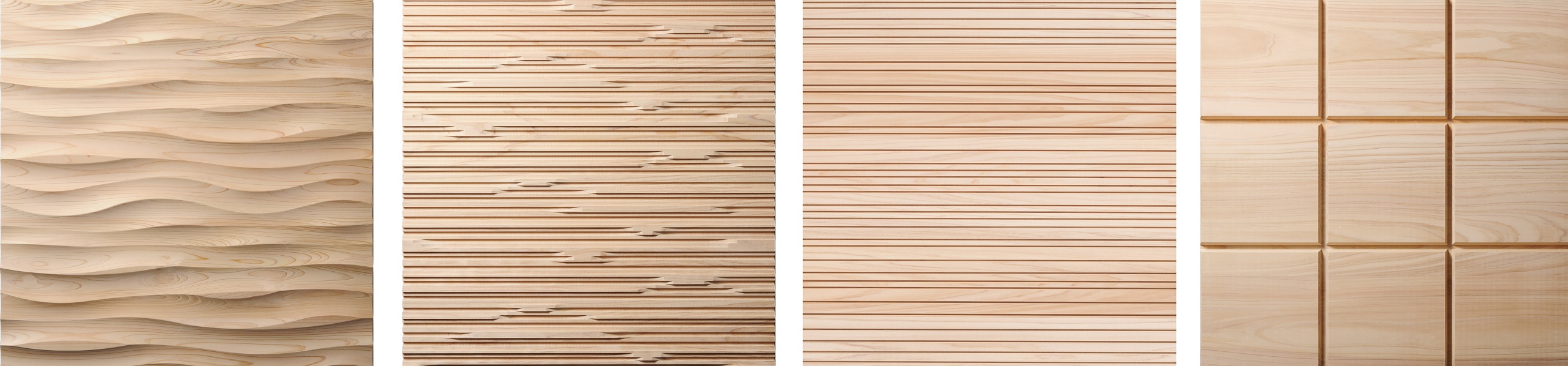

Designs:
Unfinished Type - Soft Wave, Smart Decora, Straight Simple, Block
Wood Species: Hinoki and Sugi
(Hinoki)

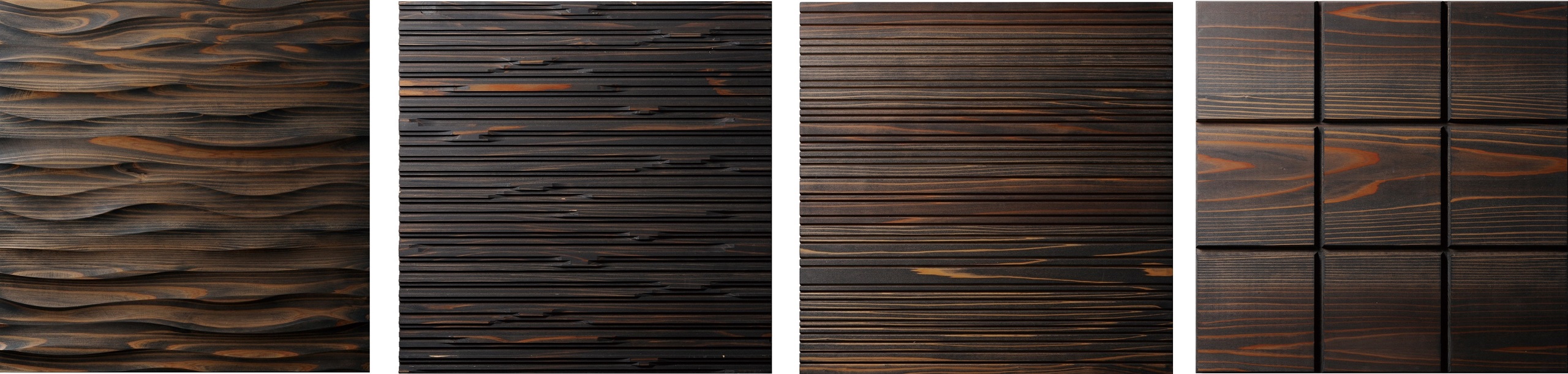

Black Type
Wood Species: Sugi
- Soft Wave, Smart Decora, Straight Simple, Block

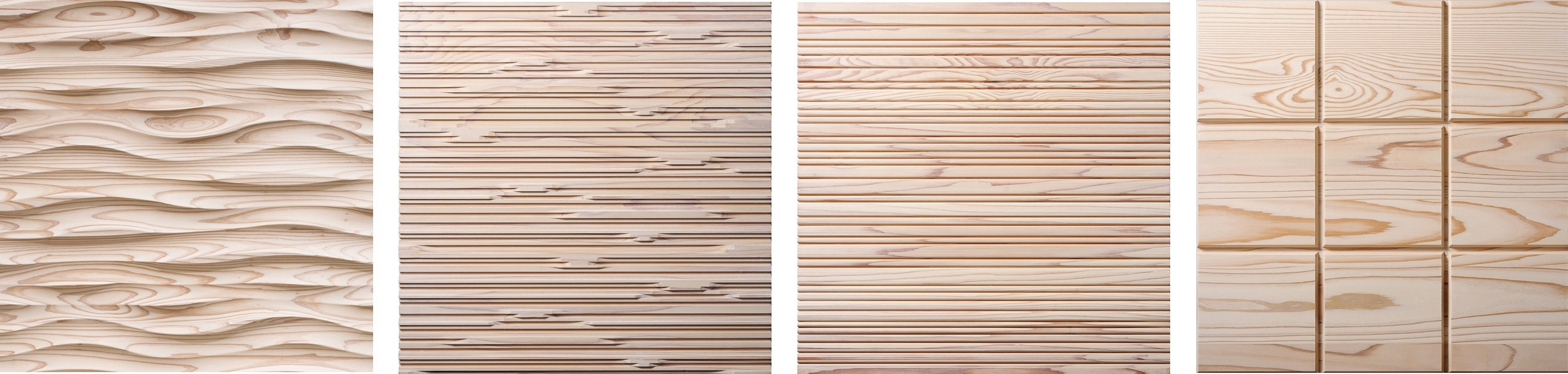

White Type
Wood Species: Sugi
- Soft Wave, Smart Decora, Straight Simple, Block



Real Wood Veneer

R-type: Real Wood Veneer Type (Long Planks)
Size: 2730mm (L) × 4.5mm (T) × 600mm (W) / 107 31⁄64in (L) x 0 11⁄64in (T) x 23 5⁄8in (W)
Designs:

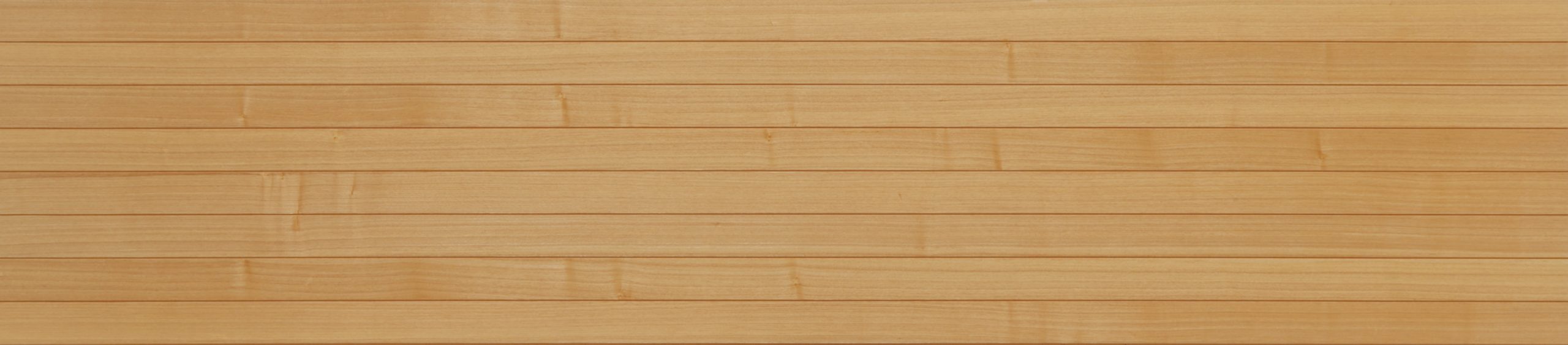

75mm Pitch
Wood Species: Black Cherry, Hard Maple, Black Walnut, Oak, Ash, Acacia, Smoke Eucalyptus, Red Cedar, Hemlock, Spruce
(Ash)

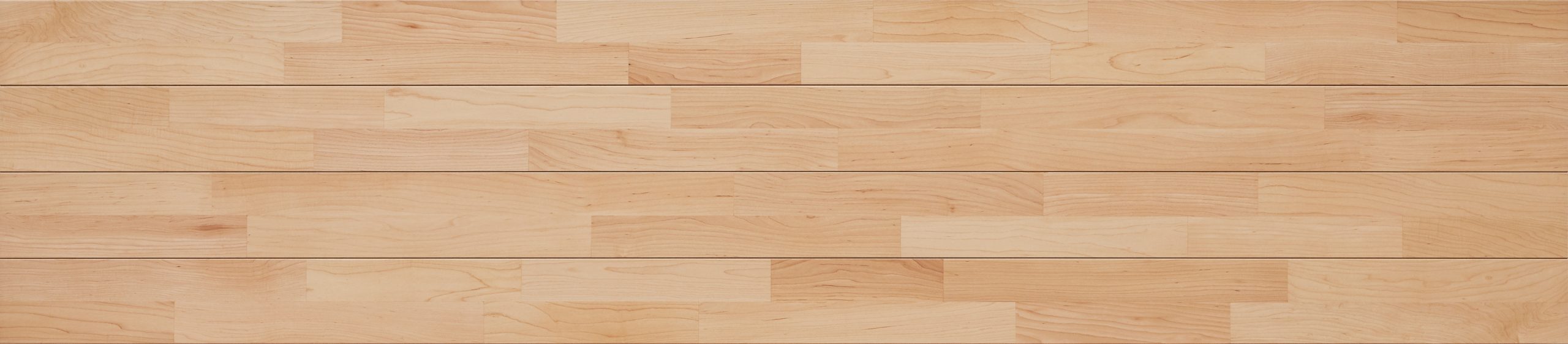

150mm Pitch
Wood Species: Black Cherry, Hard Maple, Black Walnut, Oak
(Hard Maple)

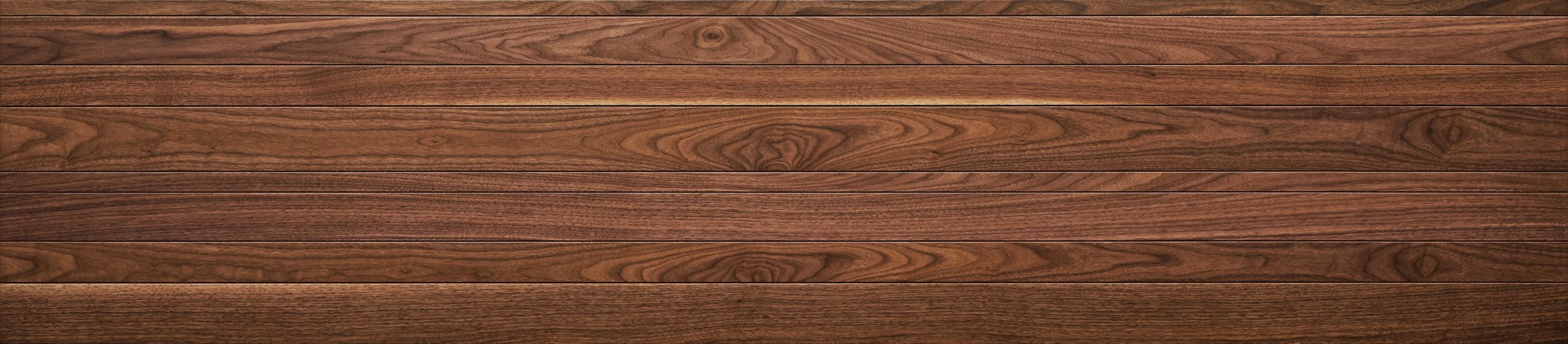

Random Pitch
Wood Species:Black Walnut, Oak, Acacia, Smoke Eucalyptus, Red Cedar, Hemlock, Spruce
(Black Walnut)


R-type: Real Wood Veneer Type (Long Planks)
Wood Species: Red Cedar
Size: 2430mm (L) × 4.5mm (T) × 600mm (W) / 95 43⁄64 in (L) x 0 11⁄64in (T) x 23 5⁄8in (W)
Design:
Random Pitch

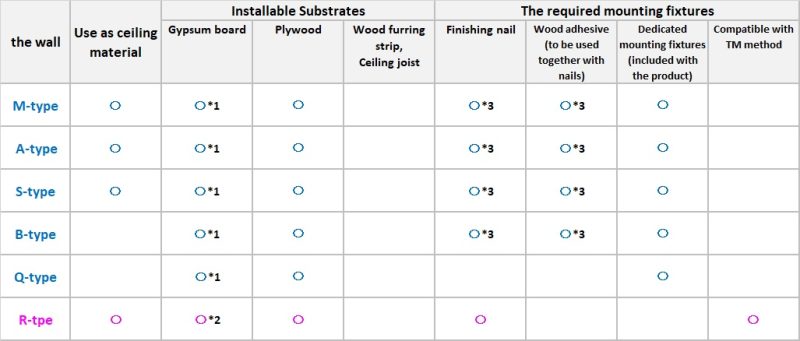

Installation Conditions

*1:
When installing using the dedicated mounting fixture on areas where there is no wooden backing (such as pillars) or steel studs beneath the gypsum board, a separately sold triple grip is required.

*2:
In such areas without wooden backing or steel studs beneath the gypsum board, installation with the dedicated mounting fixture is only possible using either the nail method (driving two finish nails diagonally at the nailing point) or the TM method.
TM Method: Double-Sided Tape + Adhesive

*3:
The spacers and other components are intended for partial use.

About Asahi Woodtec Corp.

Asahi Woodtec Corp. has been dedicated to enhancing the natural beauty and functionality of wood since its establishment in 1913. The company carefully selects and processes "precious wood" to preserve its texture and essence, rooted in the Japanese tradition of respecting materials. Over the years, they have evolved its techniques while maintaining its commitment to drawing out the full potential of wood.

With over 60 years of experience in manufacturing cosmetic plywood, Asahi Woodtec Corp. continues to innovate through its proprietary X-NEXT technology. This approach combines "Precious NEXT technology", which enhances wood's natural beauty, with "Building Material NEXT technology", which develops new functional properties. By integrating these elements, the company consistently delivers high-quality, aesthetically pleasing, and functional building materials that meet diverse customer needs.
