THREE-M-INDUSTRY – 10K FLANGED FOOT VALVE – MODEL No. 10FF-13

About Flanged Foot Valve

editor: AK

A flanged foot valve, also referred to as a foot check valve, serves as a non-return valve within systems where fluid is drawn from a lower position, such as a water source situated below a pump. Typically, it is installed either at the end of a pipeline or at intermediate points.

The primary purpose of a flanged foot valve is to prevent “water hammer” or “loss of prime.”
When a pump stops, air can enter the pipeline, causing water level drop (known as “drawdown”).
The foot valve automatically closes when the pump stops, maintaining water inside the pipeline.

Features of 10K FLANGED FOOT VALVE – MODEL No. 10FF-13

■ Constructed from stainless steel (SCS13). that resists corrosion.
■ Will not let residual water drain out, even if the liquid in the tank runs out.

Basic Specification: JIS10kRF (Flange Thin Type)
Maximum Operating Pressure: 0.1 MPa

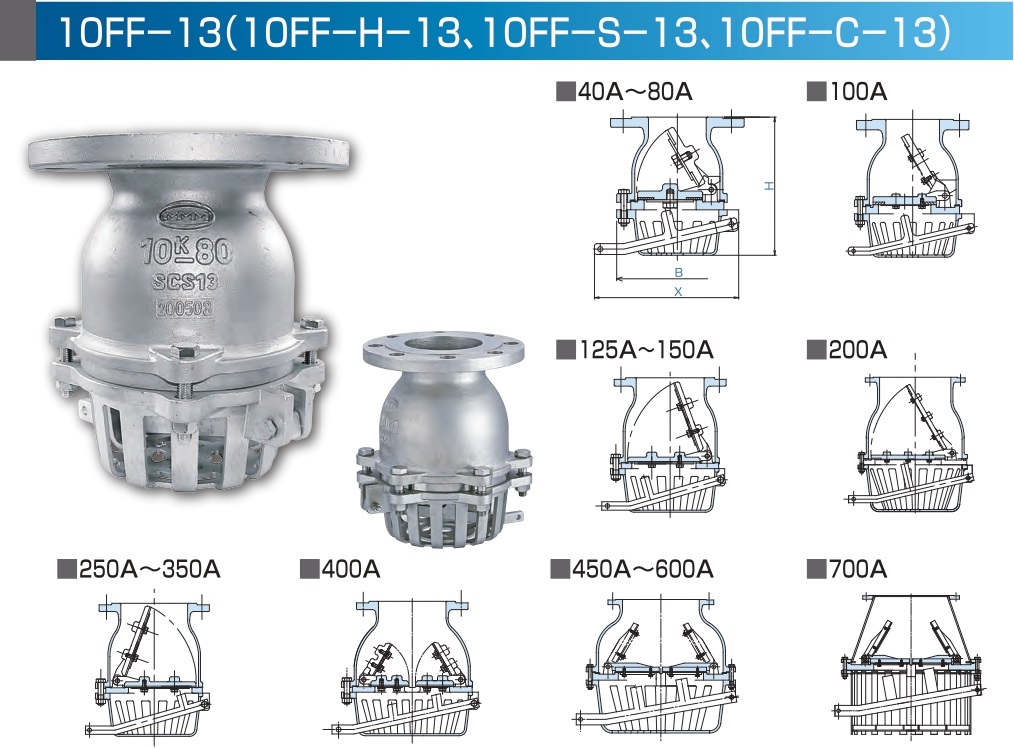

10FF-13 Product Series

10FF-13
Standard product
Body material: SCS13
Seat packing material: C.R
Gasket material: Non-asbestos
Applicable Fluid: Water
Operating conditions: Room temperature

10FF-H-13
Heat Storage Applications
Body material: SCS13
Seat packing material: Silicone
Gasket material: PTFE
Operating conditions: 60°C-80°C

10FF-S-13
High-Temperature Fluids
Body material: SCS13
Seat packing material: FPM
Gasket material: PTFE
Applicable fluid: High temperature
Operating conditions: Below 100°C

10FF-C-13
Chemical Applications
Use for fluids where rubber sheet packing cannot be used.
Body material: SCS13
Seat packing material: PTFE
Gasket material: PTFE
Applicable fluid: Chemical
Operating conditions: Below 100°C

About THREE-M-INDUSTRY

THREE-M-INDUSTRY manufactures stainless steel valves for a range of plant applications, including strainers, sight glasses, foot valves, ground-type foot valves, gauge valves, and temporary valves.
Since its establishment in 1971, the company has been playing a crucial role in developing and distributing valves and other piping materials in Japan.
